Widely used for EMS system, SCADA system, support IEC61131-3, IL / LD / ST / FBD / SFC programming language && C#

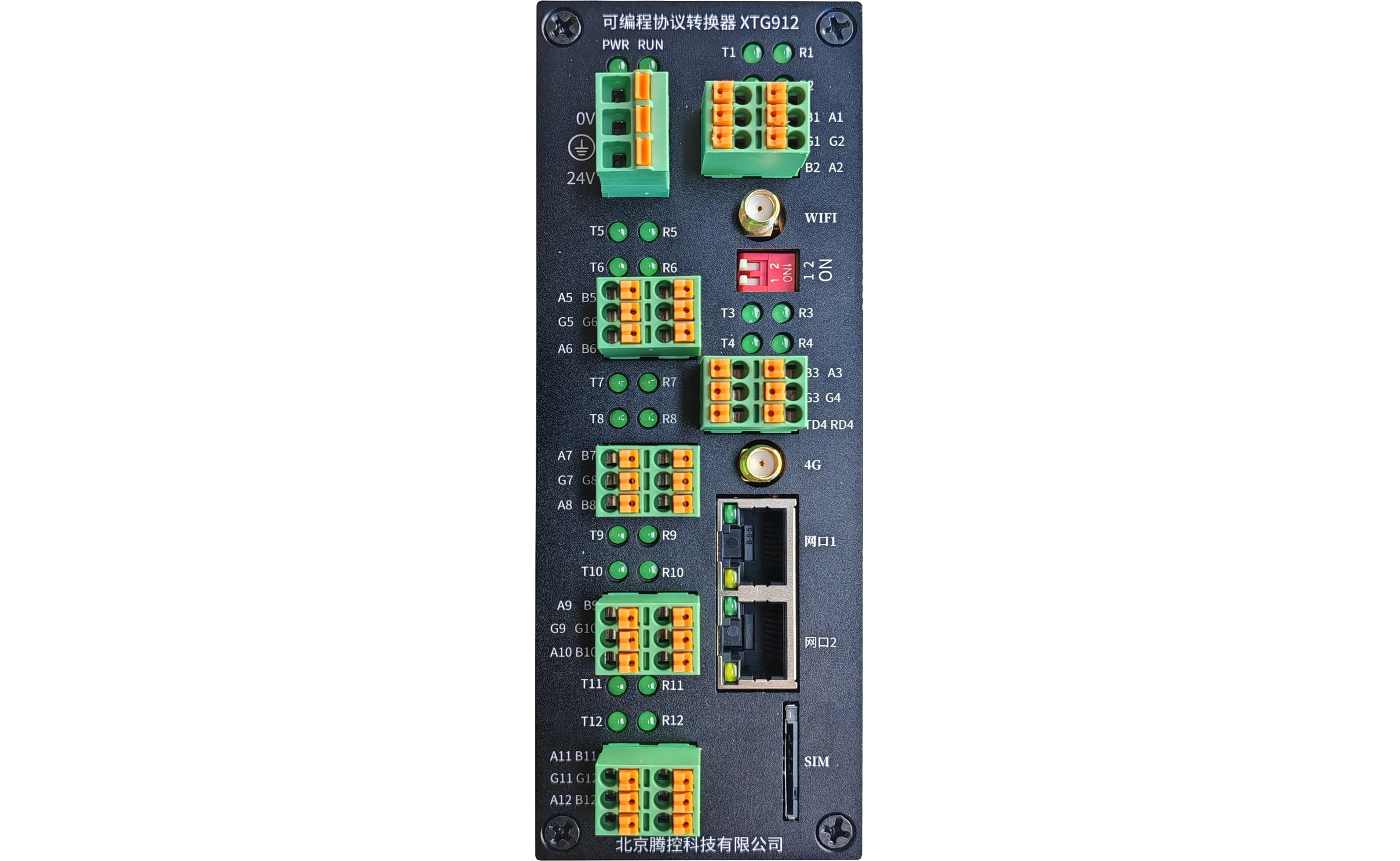

The new gateway uses ARM Cortex-A7 processor working at 800MHz, with 128MB DDR3 RAM, 8GB eMMC flash, and 10KB NVRAM, RTC.

12 RS232/RS485 port

2 10M/100M ethernet, support Modbus RTU /MODBUS TCP/IP / MQTT/ OPC UA/ IEC870-5-104

1 WiFi

1 4G wireless port (option)

9-36V DC power supply

-40ºC to 85ºC working temperature

Documents later
